E-bike charging at home: space planning, outlets, and cable management

An e-bike charging shed needs to be organized around battery safety first, then around storage and convenience. In North Idaho, cold weather, wet riding conditions, and expensive bikes all push owners toward a dedicated room where batteries can warm up, chargers can stay organized, and cords do not end up draped across every aisle. Because NIOS builds on-site, the shed can be sized around your real bike count, circuit plan, and security needs instead of forcing charging gear into whatever corner the garage leaves over.

E-Bike Charging At Home in North Idaho

E-bike charging at home is one of those tasks that looks simple until you do it every week through a North Idaho winter. Wet bikes come home muddy, batteries come in cold, chargers multiply, cords end up on the floor, and suddenly the “temporary” setup becomes a permanent trip hazard. A purpose-built e-bike charging shed solves that by giving charging its own zone, with enough outlets, wall space, and security that the setup stays calm instead of improvised.

The first rule is battery safety, not aesthetics. The U.S. Consumer Product Safety Commission's current micromobility charging safety PSA tells consumers to use only equipment designed and certified to the relevant standards, to charge only with the supplied charger, to be present while charging, and not to charge while sleeping. Bosch's current battery-care guidance adds more practical planning detail for many mainstream e-bike systems: charge in a dry area, preferably at room temperature, with a working smoke detector nearby, and do not charge when the battery temperature is too low or too high.

That means the best North Idaho charging setup follows a clear sequence:

1. Decide whether batteries stay on the bike or come off. That affects bench height, bike spacing, and whether you need shelving for multiple removable packs.
2. Inventory chargers and their real plug needs. Look at brick size, cord length, and whether chargers can sit on a shelf without covering neighboring outlets.
3. Separate parking, charging, and maintenance zones. A charging room should not force cords across the walking path.
4. Plan the cold-weather transition. Bosch specifically says charge and store batteries at room temperature when possible, which matters after a freezing ride home.
5. Build in monitoring and separation. Smoke detection, clean cable routing, and keeping combustibles away from charging shelves matter more than fancy cabinetry.

On-site construction helps because the room can be built where the daily routine actually happens. Around Athol, that might mean a side-yard bike room close to the driveway or trail-return path rather than a bigger detached shop farther away. With an on-site build, the outlet wall, bike parking depth, and door location can all follow the property instead of a transport-sized prefab box.

If your main concern is battery behavior in cold weather, read temperature and batteries: how cold affects charging and storage. If the bigger concern is theft resistance, anchor points, and visibility, security for high-value bikes: design and placement tips should be part of the planning conversation too.

What size e-bike shed do you need?

An 8x10 is the compact starting point for one or two riders who need a clean charging wall, a small service shelf, and a secure place to park the bikes out of the weather. It works when the room is disciplined and every charger has a defined home.

An 8x12 gives you more flexibility and is often the better real-world choice. That extra two feet is enough to separate the charging shelf from the entry path or to keep one side of the room dedicated to bike parking while the other side handles batteries, helmets, pumps, and tools.

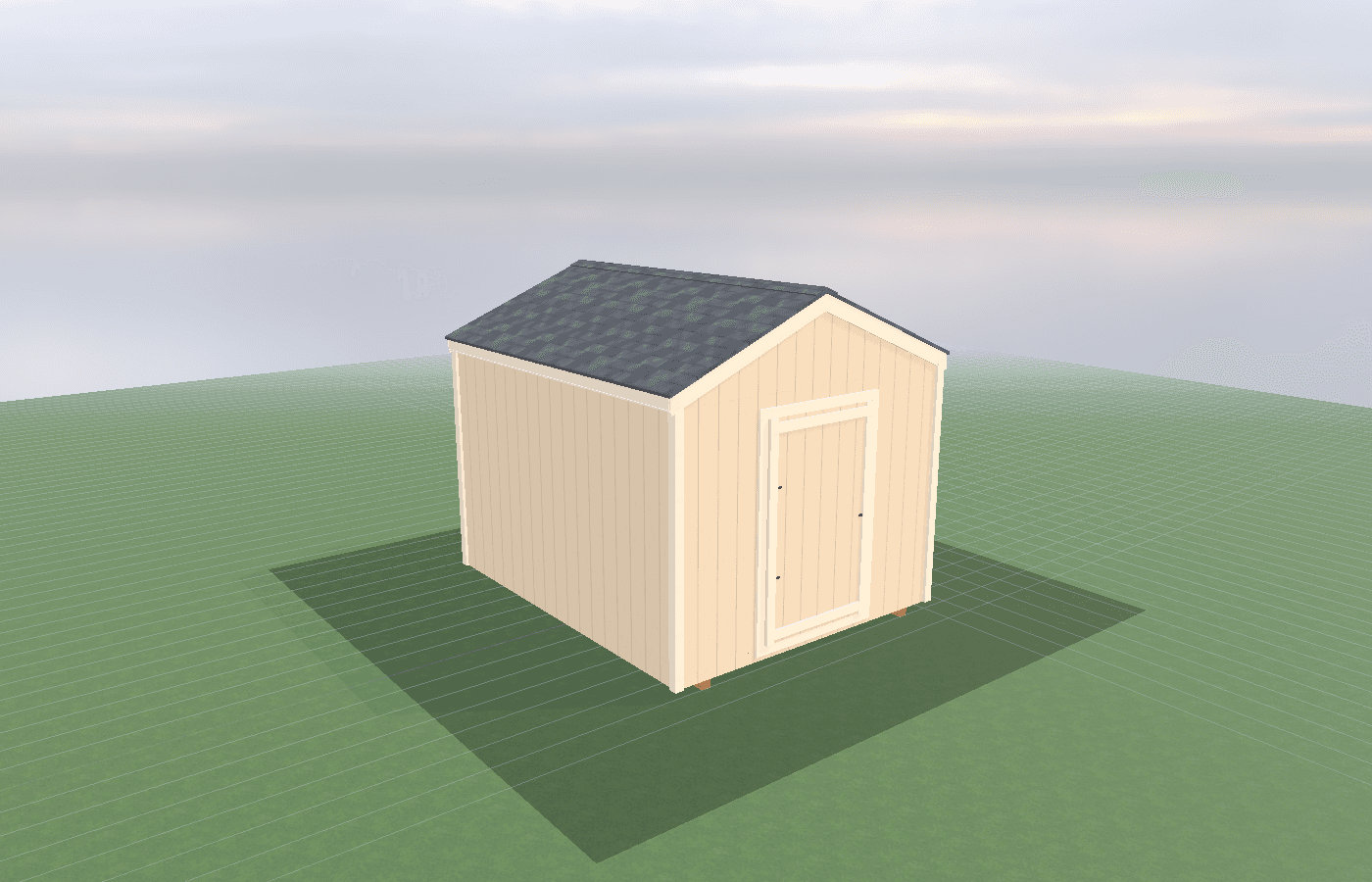

A 10x12 becomes attractive when the room needs to do more than just charge. If the space also handles tire pressure checks, basic tune-ups, drying shoes and helmets, or family-level bike storage, the wider footprint makes it much easier to keep the charging zone clean and visible.

The useful sizing test is not the number of bikes you own today. It is whether the room can safely handle every charger and every battery in use at once without cables crossing the floor, outlet strips multiplying, or spare gear getting piled against the charging shelf. If the answer is no, size up now rather than retrofitting later.

Best layouts and features for e-bike sheds

The best charging layouts follow the same logic as a good utility room: simple circulation, visible equipment, and no ambiguity about where power starts and stops.

A strong layout usually includes:

1. A dedicated charging wall. Use this wall only for outlets, chargers, and battery staging. It should be dry, easy to see, and free of hanging soft goods.
2. Bike parking clear of the outlet wall. If batteries charge on the bikes, leave enough side clearance that plugs are not kinked and handlebars do not knock chargers loose.
3. Cable management that keeps cords off the floor. Short shelf drops, cord hooks, and outlet placement at practical height matter more than decorative trim.
4. A small monitoring zone. Add a visible smoke detector and keep the charging area easy to inspect quickly before bed or before leaving the property.
5. A secure shell. High-value bikes deserve strong doors, quality locks, and a layout that is not visible from the road every time the door opens.

Two common mistakes are worth avoiding. The first is using daisy-chained power strips because the bikes keep multiplying. The second is treating a cold battery like it should charge immediately after a freezing ride. Bosch's current support guidance says the battery will not charge if it is too cold, and it recommends warming it in a warmer environment before restarting the charging process. That is exactly why a modest conditioned room or at least a dry, room-temperature charging shelf is so useful in North Idaho.

Another planning point is charger spacing. Many chargers use larger transformer bricks that cover more than one receptacle if the outlet layout is too tight. For a one- or two-bike household, that is easy to fix with outlet spacing and shelves. For three or more bikes, the room benefits from a more deliberate circuit plan and sometimes a small subpanel, especially if the space also has lights, a dehumidifier, or a mini-split. That is a design discussion, not a guess-it-later decision.

Cost, timing, and build-planning factors

Charging-shed costs move fastest when the project adds power, insulation, security upgrades, and weather control. The shell size matters, but the real budget drivers are usually the electrical scope, better doors and locks, lighting, and whether the owner wants the room usable in all four seasons.

Idaho permitting matters here. Idaho DOPL's current electrical FAQ says a permit is required when electrical, plumbing, or HVAC work is performed, and it says homeowners doing their own work on residences and related outbuildings still use the state permit path. Kootenai County's building page separately notes that county jurisdiction covers residential storage buildings over 200 square feet in county areas, while state inspectors handle plumbing and electrical questions. Put simply: once the charging room becomes a powered detached structure, plan the permit path early.

Timing also matters because winter is when a bad charging setup becomes obvious. A cramped garage corner might be tolerable in July, but it stops working when batteries come in cold, riding gear is wet, and daylight disappears before dinner. On-site construction helps because the room can be built near the daily bike path and sized around the power plan at the same time instead of patched together later.

Prioritize the upgrades that actually improve safety and daily use: enough outlets, enough shelf room, cable management, a clean charging wall, and a layout that does not mix chargers with flammable clutter. If you want the room designed around your bike count and property layout, start with a free estimate.

Popular sizes and layouts for e-bike sheds

An 8x10 is the lean starting point for a compact charging room. It is best for one or two bikes when the goal is secure storage plus a simple charging shelf.

An 8x12 is the strongest all-around choice for many owners because it leaves more space for a proper outlet wall, safer cable routing, and basic accessory storage without crowding the bikes.

A 10x12 is the better answer when the room also handles tune-ups, wet gear, family bike turnover, or multiple active chargers at once. The extra width lowers daily friction fast.

The best layout is the one that keeps the charging wall visible, the cables off the floor, and the bikes easy to move without unplugging everything. If the routine stays simple, the room stays safe.

Frequently asked questions about e-bike charging at home

What size e-bike shed works best for e-bike charging at home: space planning, outlets, and cable management?

For many North Idaho buyers, 8x10 and 8x12 are the best starting sizes because they balance usable floor space with realistic placement on the property. We then size up or down based on snow load, storage volume, and how much dedicated work or seating area you need. Compare 8x10 and see 8x12.

How many outlets does an e-bike charging shed need?

One dedicated 20-amp outlet per charger. If you have 3+ bikes, plan a small subpanel. Never daisy-chain power strips for lithium battery chargers — it is a fire risk. See e-bike options.
